PCB cam services

• We provide services for high layer count multilayers including blind & buried vias. Impedance control coupone.
• Unlimited editing capabillites.

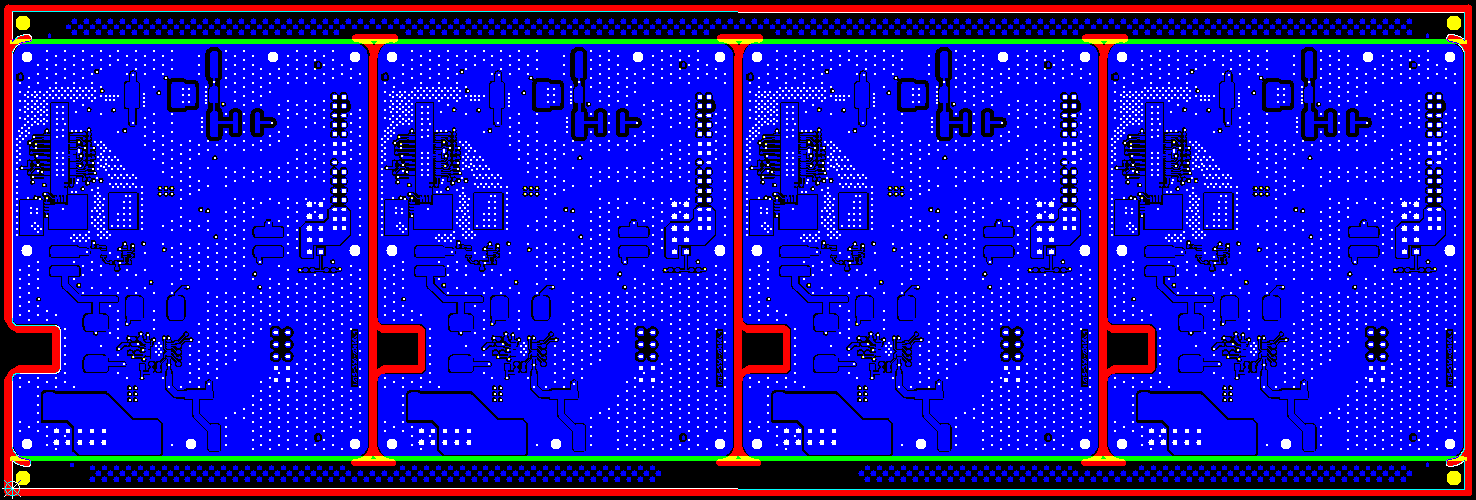

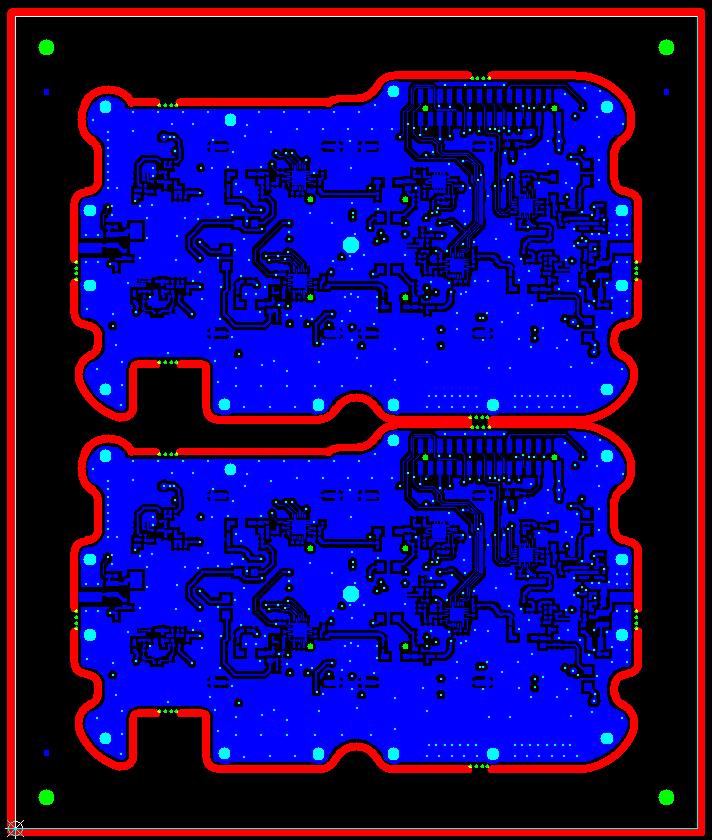

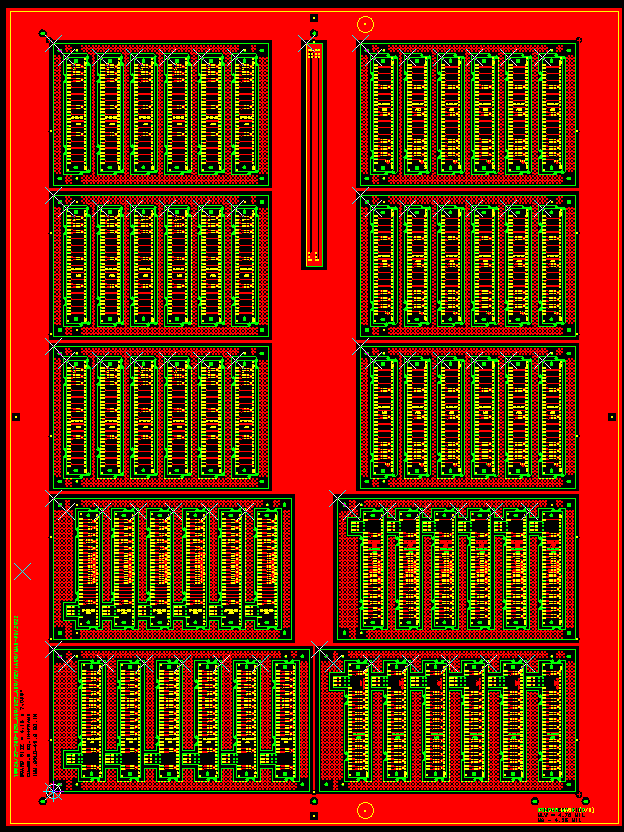

• Full panelization for single, double side and multilayer boards.
• Generating drill & Routing files for CNC Machines.
• Error detecting services.

QUOTE (RFQ):

• TIPS provide quote (RFQ) services to customer world wide.
• Load the customer data.
• Align layers.
• Check data spacing.
• CAD netlist comparison with data and given report.
• Fill up RFQ form as per your requirements.

PCB CAM services:

• DRC (Design Rule Checks)

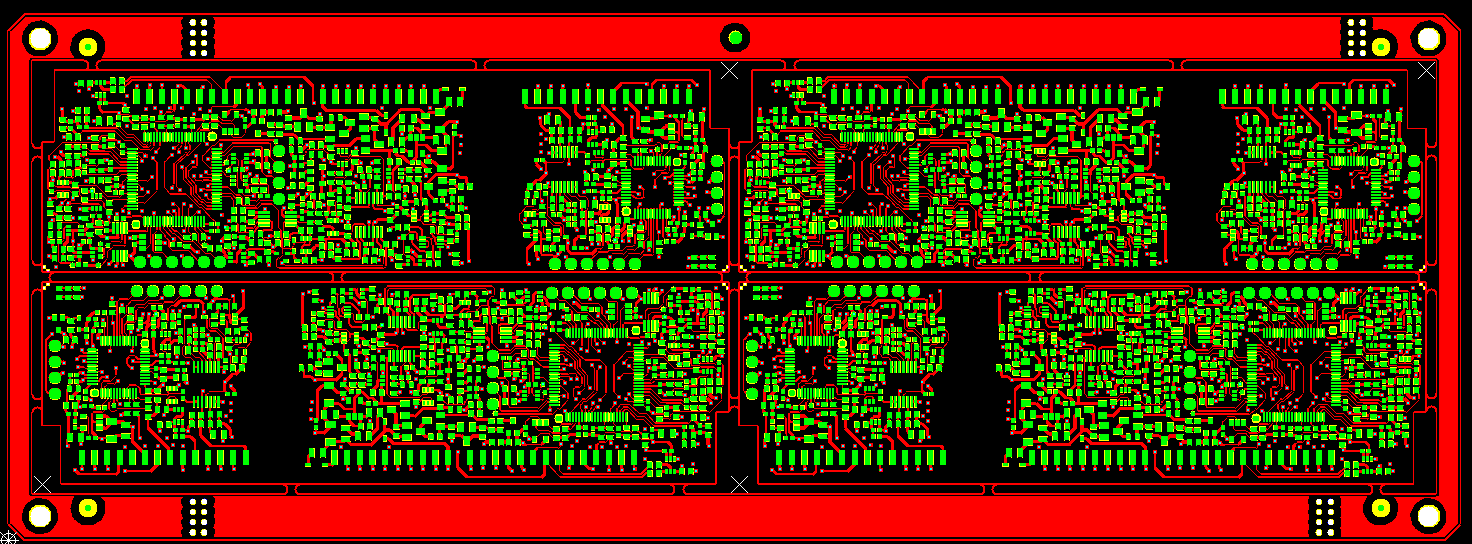

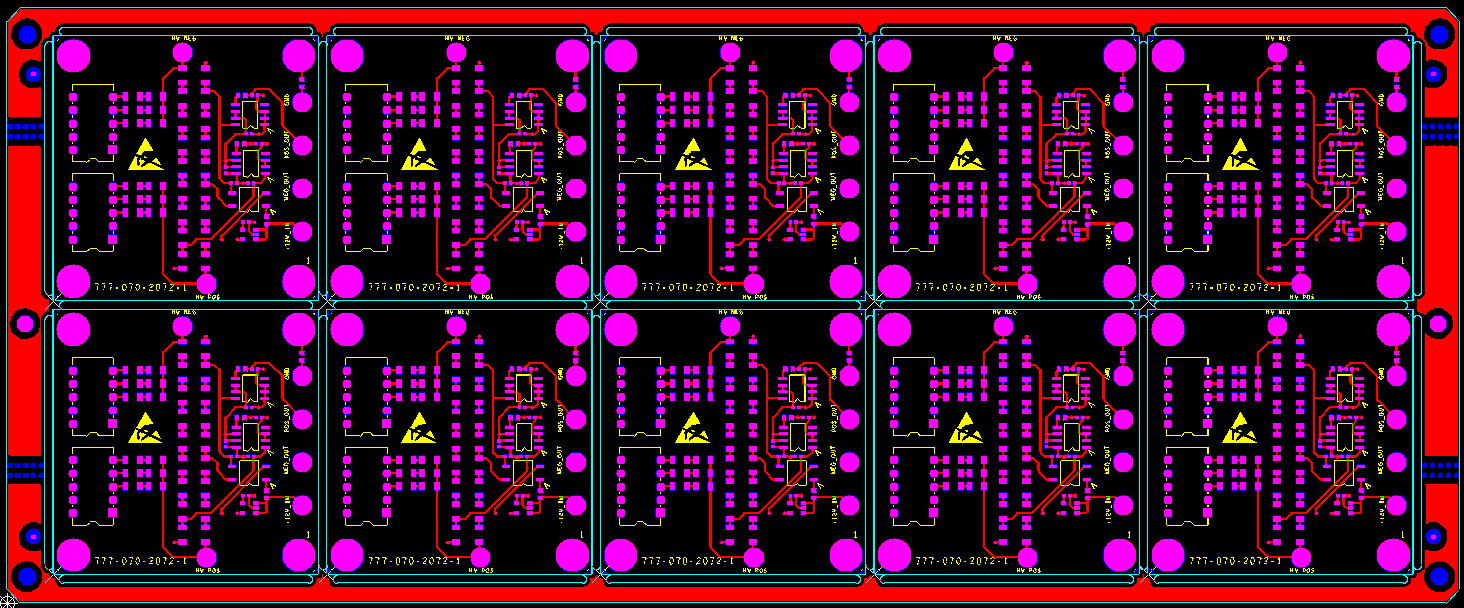

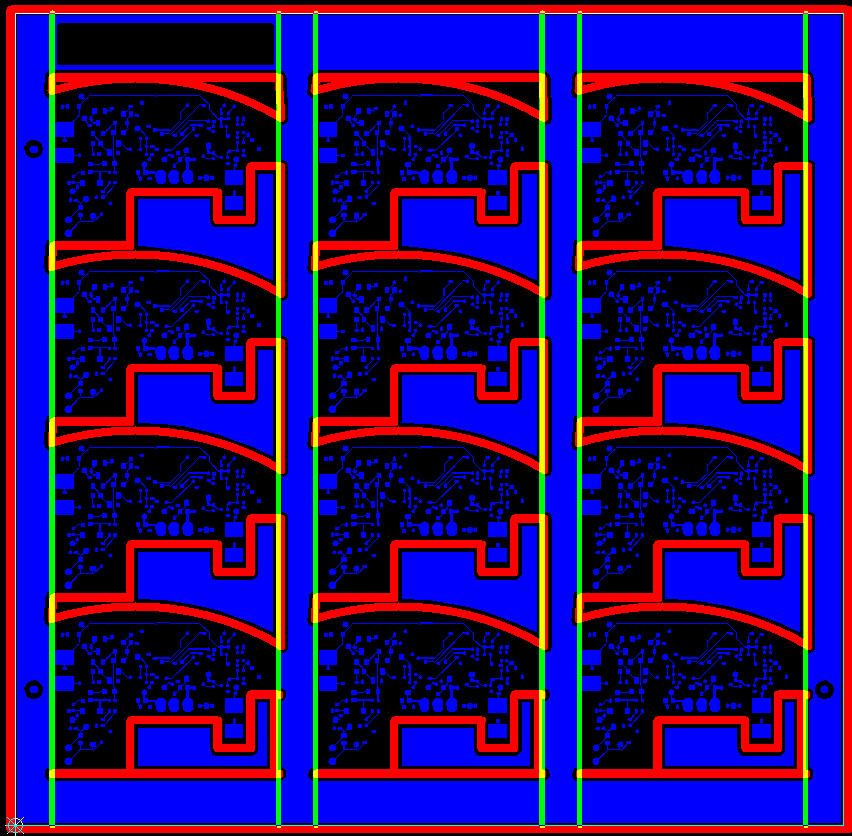

• Customer Panelizations.

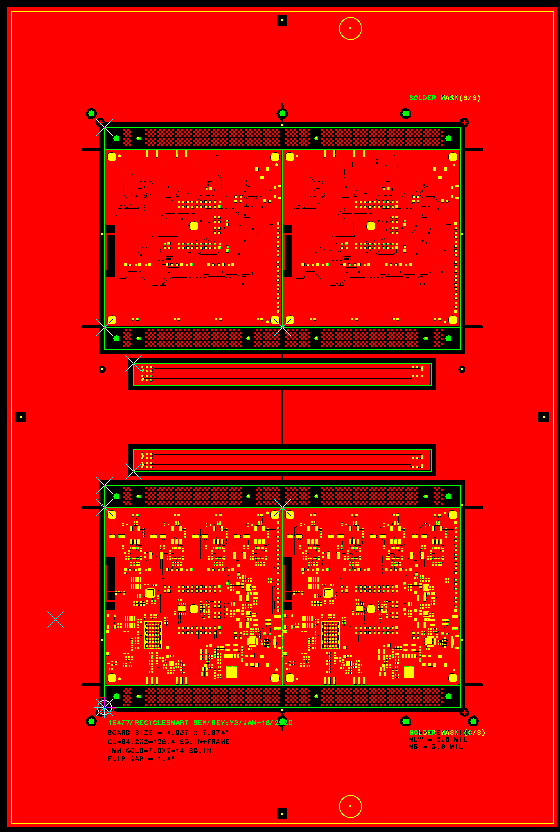

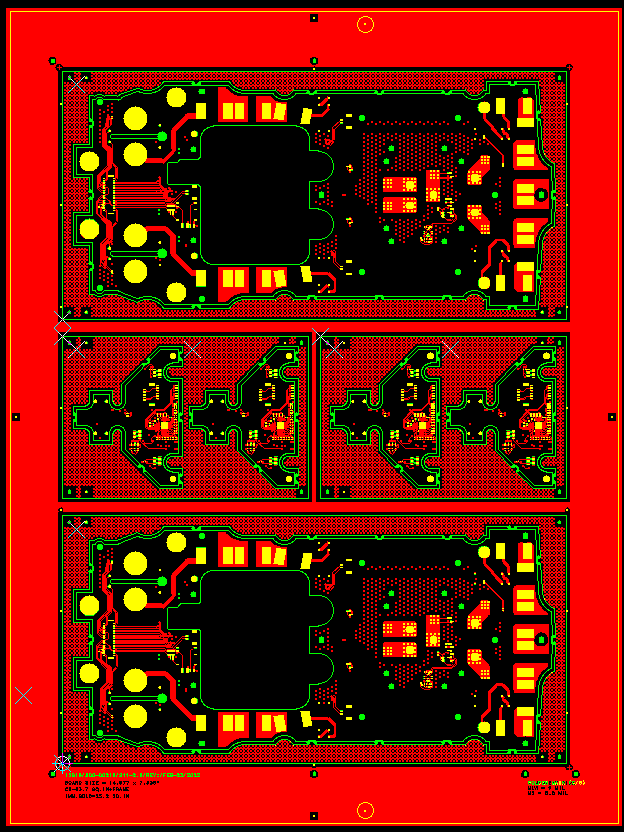

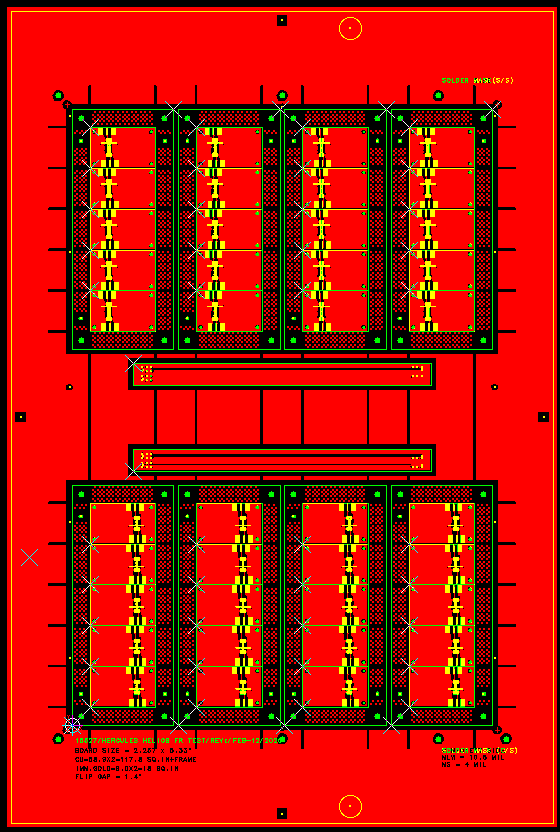

• Fabrication Panelizations.
• Metal boards editing.

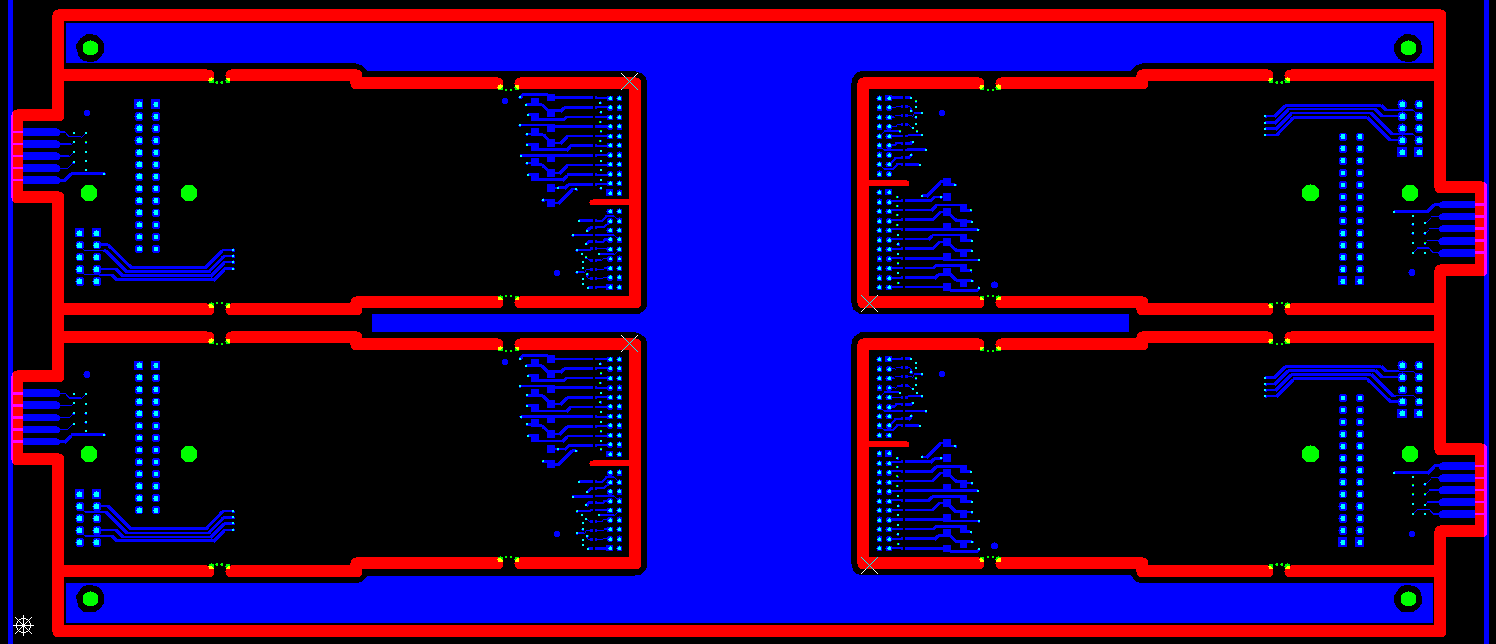

• Hard Gold editing.

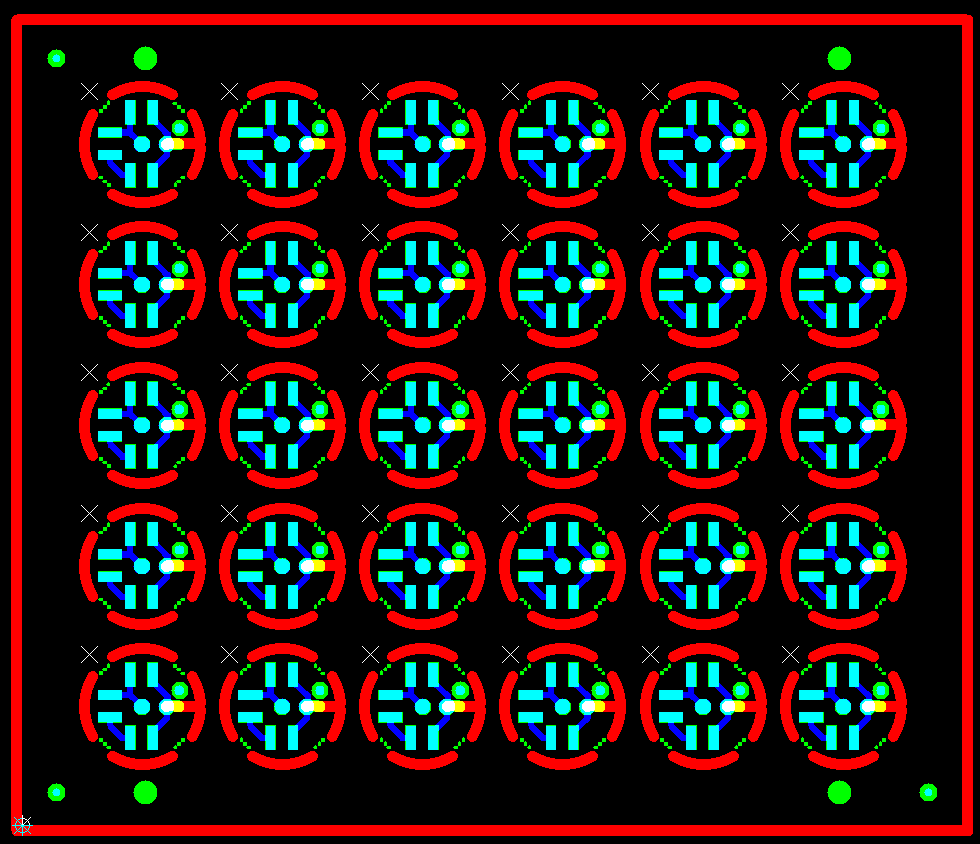

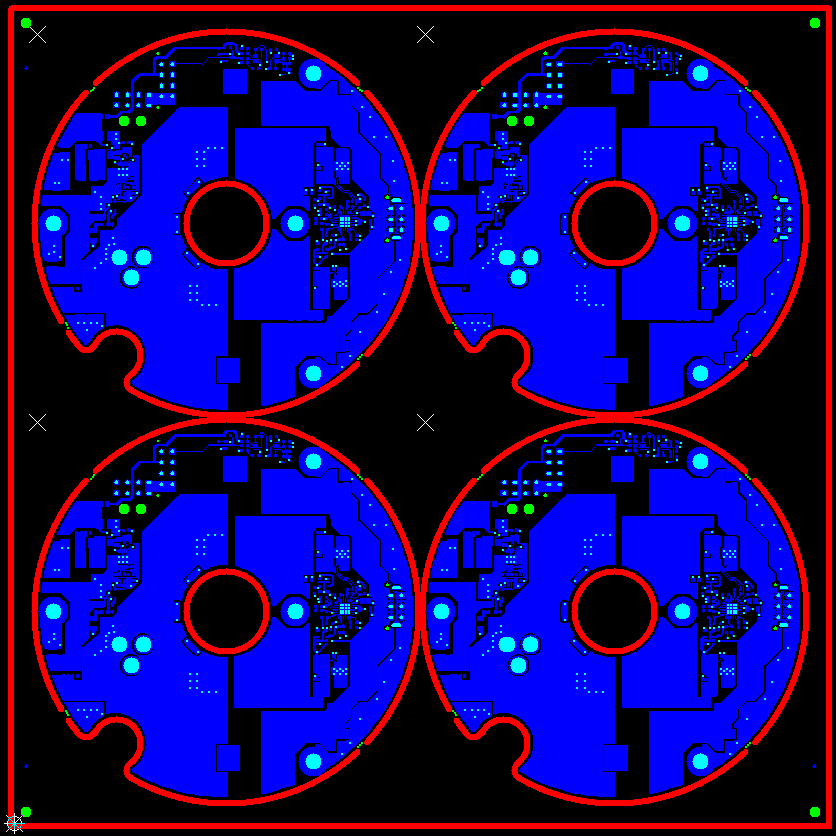

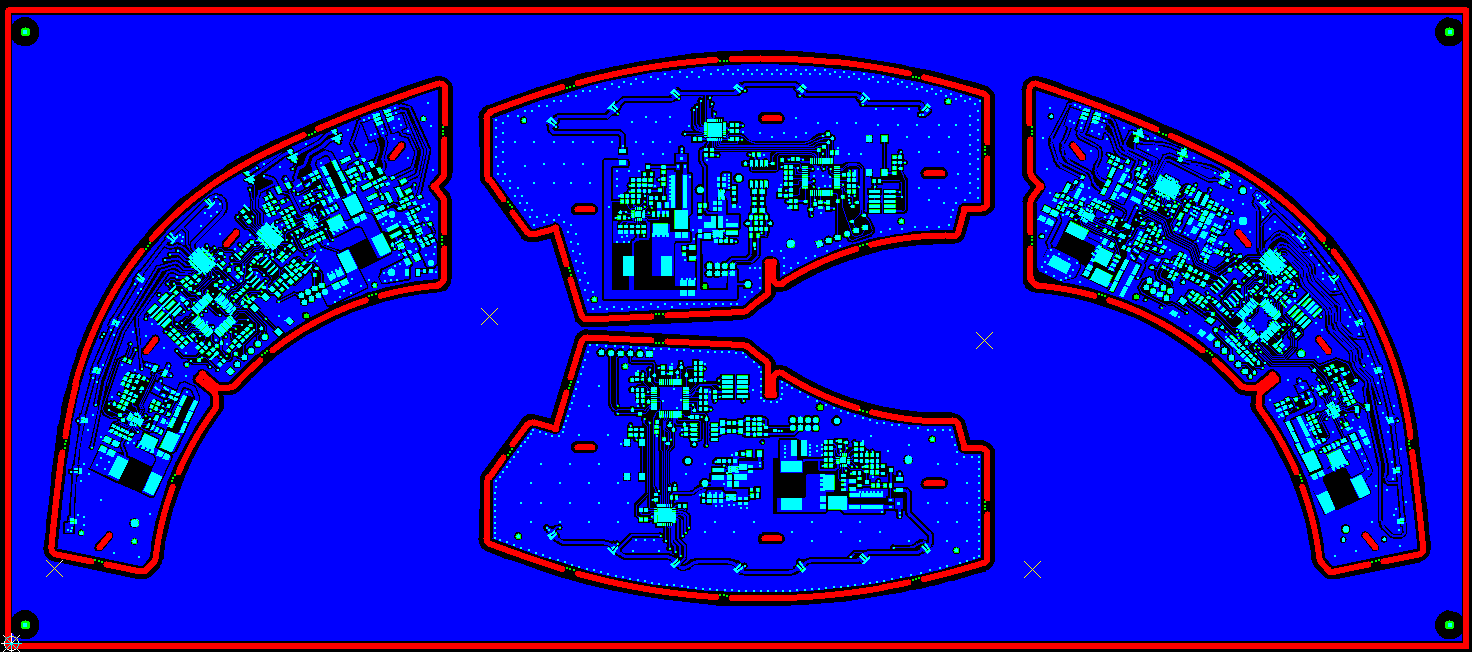

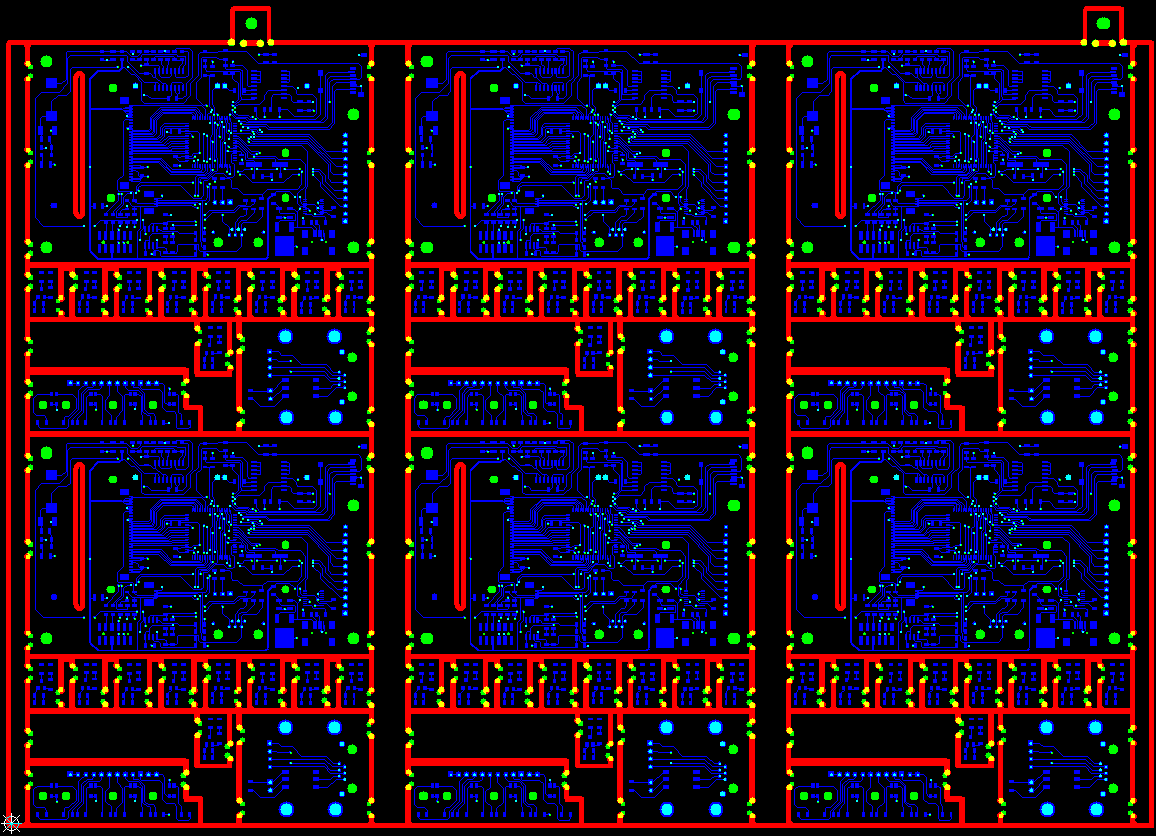

• Multiboards tab rout with mouse bits.

DRC (Design Rule Checks):

• Drill Checks (Drill - Drill spacing, Double hits)
• Dimension checks
• Annular Ring Checks
• Copper-Copper spacing checks
• Drill-Copper Checks
• Mask Checks(Coverage & SMD DAMS)
• Silk Checks(min. line width, silk clipping)
• Any other customer checks
